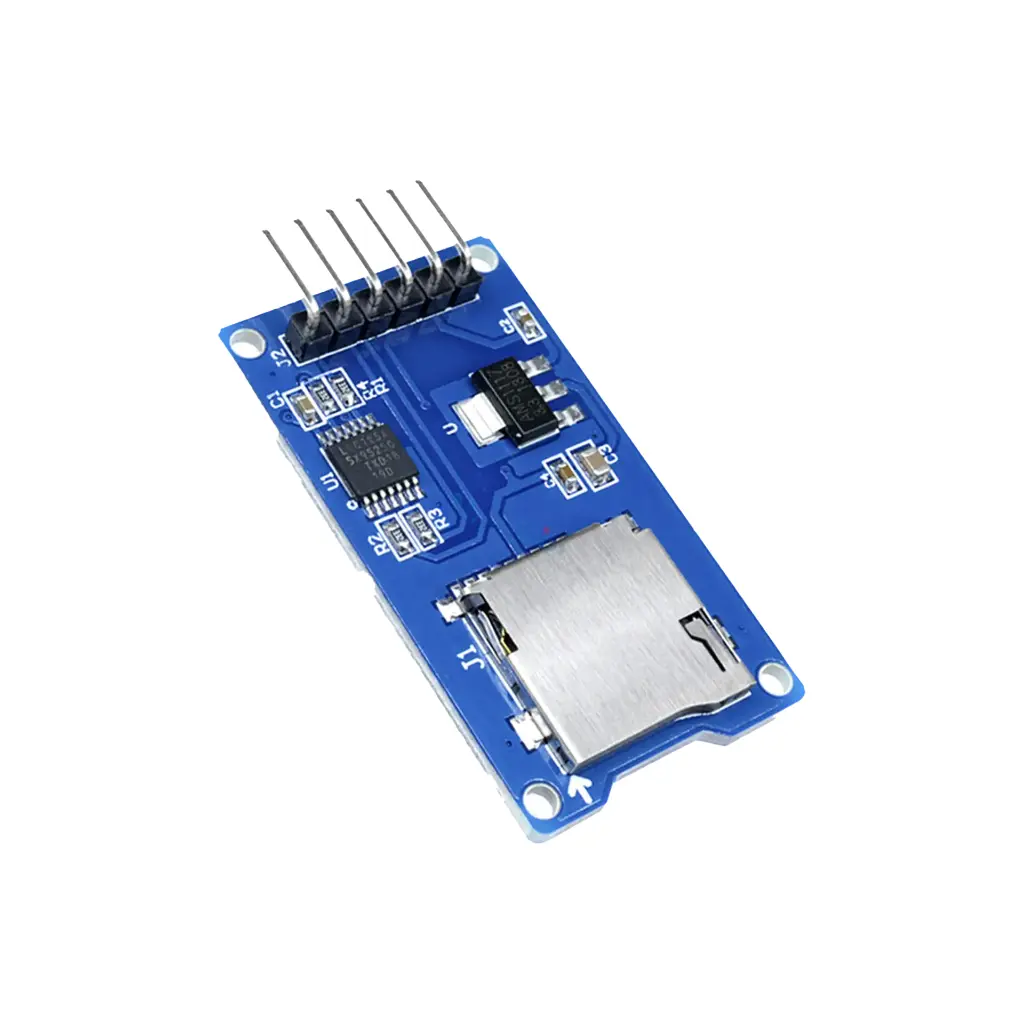

Micro SD Card SPI Module

Micro SD Card SPI Module

http://www.abdullah-electronics.com/web/image/product.template/24/image_1920?unique=e697fdb
(0 review)
The Micro SD Card SPI Module enables microcontrollers like Arduino, ESP32, and STM32 to read from and write to microSD memory cards using the SPI interface. It’s ideal for projects requiring data logging, storage, or file access, such as sensors, audio, or configuration storage.

2,000 IQD 2000.0 IQD 2,000 IQD

2,000 IQD

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
Shipping: 2-3 Business Days

Share

Features Applications

Features

  • Supports microSD / TF cards (FAT16 & FAT32)
  • SPI communication for easy interfacing
  • Built-in 3.3V voltage regulator and level shifter
  • Compatible with Arduino, ESP8266/ESP32, STM32, and more
  • Ideal for data logging, storage, and SD-based projects

Applications

  • Sensor data logging (temperature, GPS, motion)
  • File-based configuration systems
  • SD card-based MP3 or image storage
  • Arduino or ESP32 memory expansion
  • IoT projects requiring offline storage
General Environmental Physical

General

  • Supported Cards: microSD, TF (FAT16 / FAT32)
  • Interface: SPI (CS, SCK, MOSI, MISO)
  • Operating Voltage: 3.3V–5V (regulated onboard)
  • Logic Level: 3.3V (compatible with 5V via level shifting)
  • Current Draw: <100mA (typical during access)

Environmental

  • Operating Temperature: -20°C to +85°C
  • Humidity: ≤85% RH (non-condensing)

Physical

  • Dimensions: 19.2mm × 15.5mm × 15.3mm
  • Pin Count: 5 (2 coil, 3 contact: COM, NO, NC)
  • Weight: Approx. 7g

No examples available yet. Stay tuned for updates!
