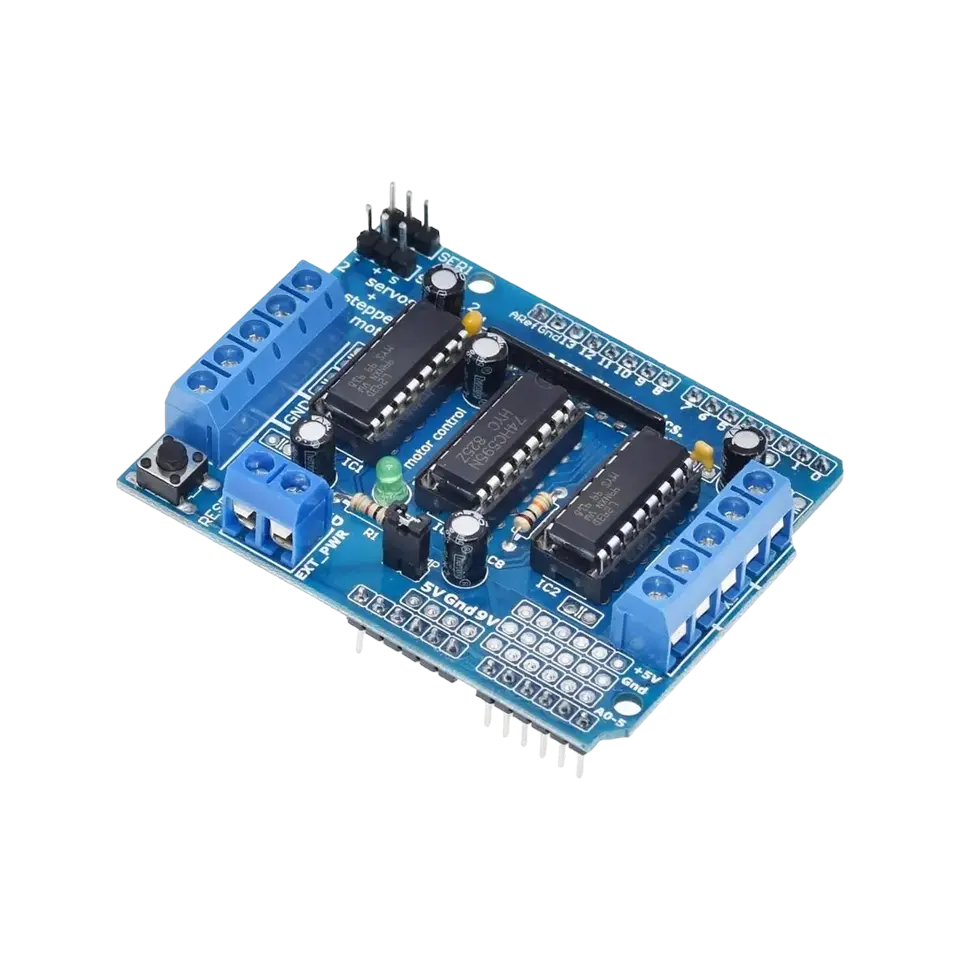

L293D Motor Driver Shield

L293D Motor Driver Shield

http://www.abdullah-electronics.com/web/image/product.template/18/image_1920?unique=4c47836
(0 review)
The L293D Motor Driver Shield is an easy-to-use Arduino-compatible expansion board designed to control DC motors and stepper motors. Based on the L293D dual H-bridge driver IC, this shield allows you to drive up to four DC motors or two stepper motors with direction and speed control using PWM signals.

5,000 IQD 5000.0 IQD 5,000 IQD

5,000 IQD

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
Shipping: 2-3 Business Days

Share

Features Applications

Features

  • Controls up to 4 DC motors or 2 stepper motors
  • Built-in L293D H-Bridge ICs (2 chips)
  • Supports PWM speed control
  • Includes current sensing and external power input
  • Stackable design fits directly onto Arduino UNO, Mega, etc.
  • Screw terminals for easy motor and power connections

Applications

  • Arduino robot car projects
  • Automated doors or windows
  • CNC, 3D printers, or pan-tilt systems
  • DIY automation and control panels
  • Educational robotics and STEM learning kits
General Environmental Physical

General

  • Motor Driver IC: L293D × 2
  • Motor Supply Voltage: 4.5V – 36V DC
  • Logic Voltage: 5V DC (from Arduino)
  • Max Current: 600mA per channel (peak 1.2A)
  • Channels: 4 H-bridges (for 4 DC motors or 2 steppers)
  • Speed Control: PWM via Arduino pins
  • Other Features: Enable pins, direction control, braking

Environmental

  • Operating Temperature: -20°C to +85°C
  • Humidity: ≤85% RH (non-condensing)

Physical

  • Form Factor: Arduino UNO Shield
  • Dimensions: ~70mm × 55mm
  • Weight: ~30g
  • Mounting: Direct plug-in + standoff holes
