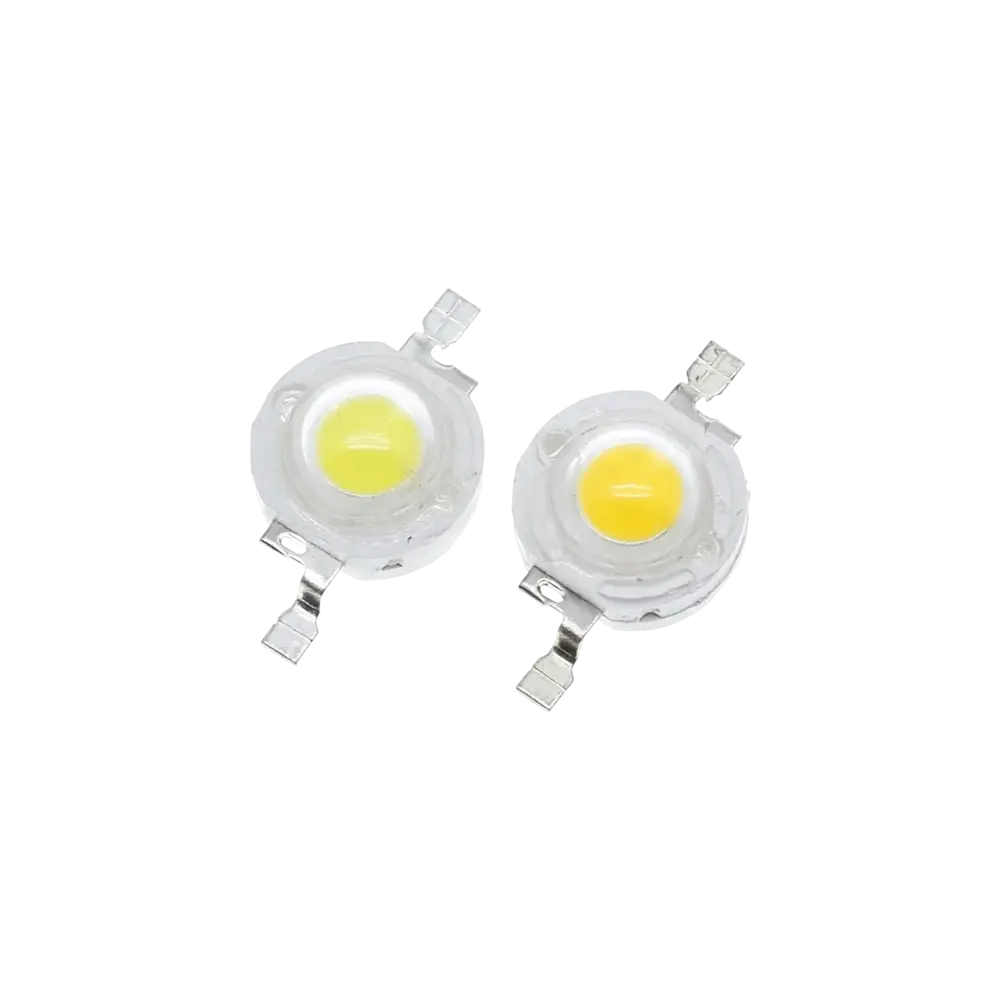

100-120LM SMD LED 1W

100-120LM SMD LED 1W

http://www.abdullah-electronics.com/web/image/product.template/12/image_1920?unique=913bf3a
(0 review)
The 1W SMD LED is a high-brightness surface-mount light source designed for energy-efficient lighting and signaling applications. With a luminous output of 100 to 120 lumens, it’s suitable for compact lighting systems, DIY flashlights, indicators, and custom LED panels.

250 IQD 250.0 IQD 250 IQD

250 IQD

Not Available For Sale

  • Color

This combination does not exist.

Contact Us

Terms and Conditions
Shipping: 2-3 Business Days

Share

Features Applications

Features

  • Bright 1W LED with 100–120 lumen output
  • High-efficiency, low thermal resistance
  • Surface-mount design (SMD) for compact assemblies
  • Long life and low power consumption
  • Compatible with aluminum or star PCBs for heat dissipation

Applications

  • LED flashlights and headlamps
  • Backlighting and light panels
  • DIY lighting fixtures and lamps
  • Signboards and display illumination
  • Indicator and accent lighting
General Environmental Physical

General

  • Type: SMD LED (1W)
  • Luminous Flux: 100–120 lm
  • Forward Voltage: 3.0V – 3.4V (typical)
  • Forward Current: 300mA (typical)
  • Power: 1W
  • Color Options: White, Warm-White, etc.
  • Viewing Angle: 120°

Environmental

  • Operating Temperature: -30°C to +85°C
  • Humidity: ≤85% RH (non-condensing)

Physical

  • Package Type: SMD (can be mounted on star PCB)
  • Dimensions: Approx. 8mm × 8mm × 2mm
  • Weight: ~1g
  • Heat Sink Required: Yes (for continuous operation)
