0.91" OLED 128x32 I2C Display SSD1306

0.91" OLED 128x32 I2C Display SSD1306

http://www.abdullah-electronics.com/web/image/product.template/6/image_1920?unique=a27a90d
(0 review)

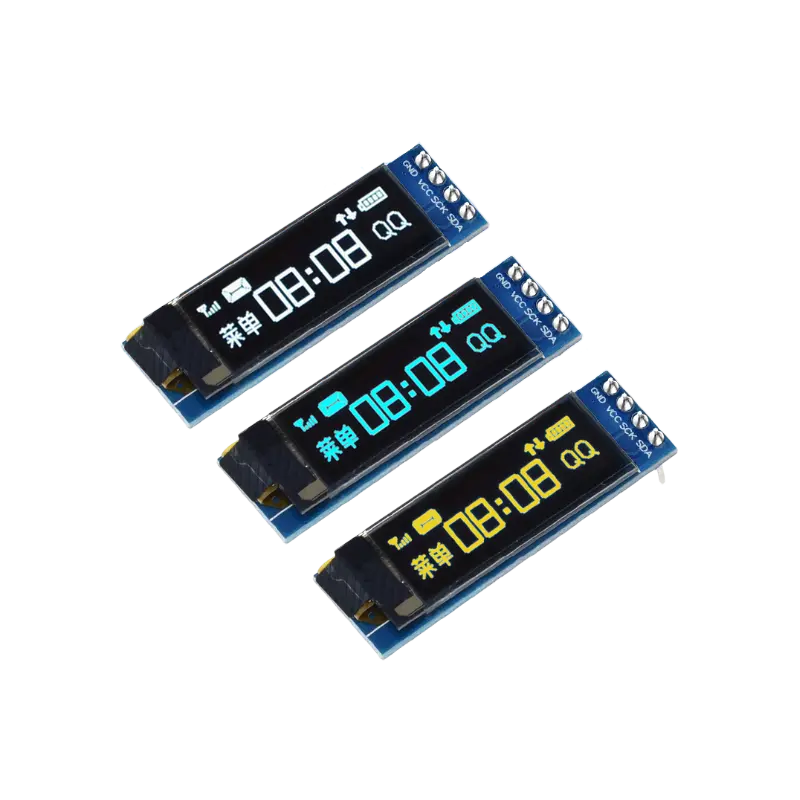

The 0.91" OLED 128×32 Display Module is a compact, low-power screen ideal for microcontroller-based projects. It uses the SSD1306 driver and communicates over the I2C interface, requiring only two data lines. Despite its small size, the display offers sharp contrast, making it perfect for text, icons, and basic graphics.

4,000 IQD 4000.0 IQD 4,000 IQD

4,000 IQD

Not Available For Sale

  • Color

This combination does not exist.

Contact Us

Terms and Conditions
Shipping: 2-3 Business Days

Share

Features Applications

Features

  • High-contrast 128×32 pixel resolution
  • Built-in SSD1306 controller
  • I2C communication (2-wire)
  • Low power consumption
  • Supported by Arduino, ESP32, STM32, Raspberry Pi, and others
  • Available in White, Blue, Yellow variants

Applications

  • Battery status or sensor displays
  • IoT device readouts
  • Wearable electronics
  • Clocks, meters, and portable tools
  • Compact UIs for embedded systems
General Environmental Physical

General

  • Display Size: 0.91 inch (diagonal)
  • Resolution: 128 × 32 pixels
  • Driver IC: SSD1306
  • Interface: I2C (VCC, GND, SDA, SCL)
  • Operating Voltage: 3.3V – 5V DC
  • Color Variants: White / Blue / Yellow
  • Viewing Angle: >160°

Environmental

  • Operating Temperature: -30°C to +70°C
  • Humidity: ≤85% RH (non-condensing)

Physical

  • Dimensions: Approx. 38mm × 12mm × 2mm
  • Mounting: Solder pads or header pins
  • Weight: ~3g
