Overview

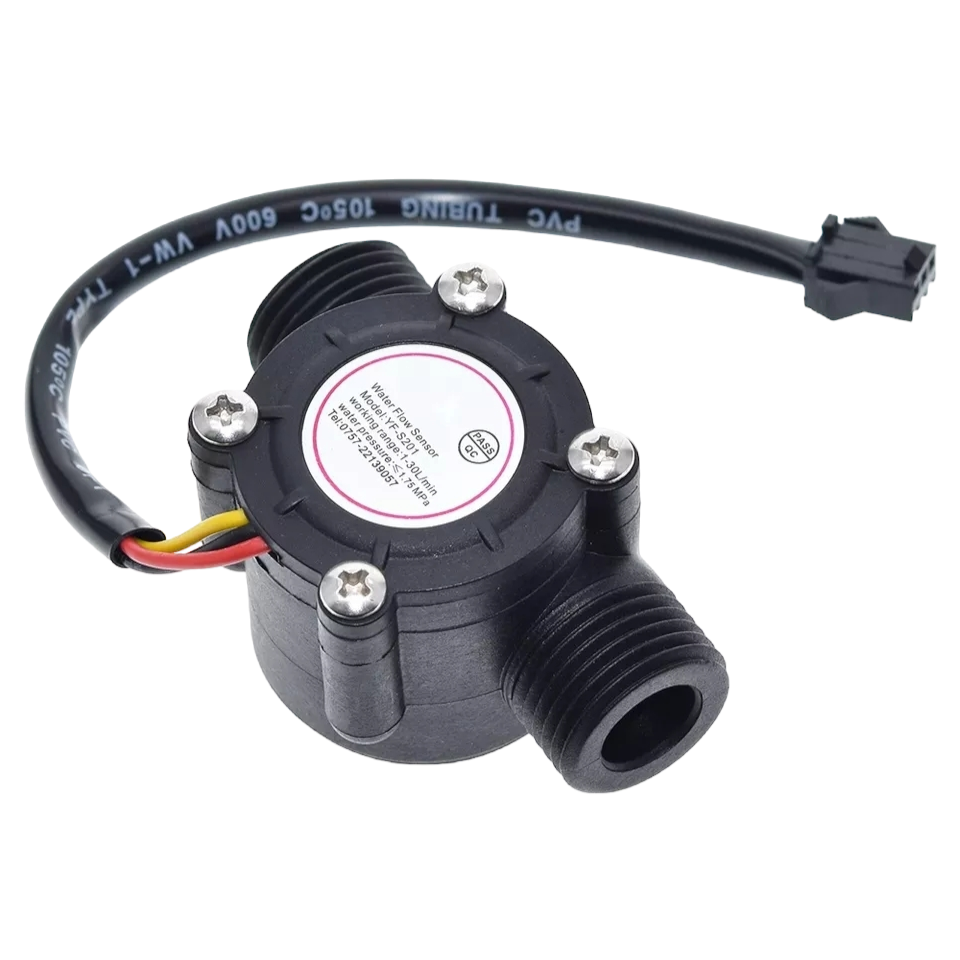

The YF-S201 Water Flow Sensor is a versatile and reliable sensor used to measure the flow rate of water or other liquids in pipes or tubes. It is commonly used in water monitoring systems, automated irrigation, and fluid measurement projects.
Features
- Hall Effect Sensor: Measures flow rate using a rotating magnet and hall effect sensor.
- Wide Range: Capable of measuring flow rates in the range of 1 to 30 liters per minute.
- Durable Construction: Made from high-quality materials for long-lasting use.
- Easy Integration: Outputs pulse signals for easy interfacing with microcontrollers like Arduino or Raspberry Pi.
- Compact Design: Suitable for tight spaces in water pipelines.
Specifications
- Operating Voltage: 5V DC
- Flow Rate Range: 1 to 30 liters per minute
- Pulse Output: 1 pulse per 1 liter of water
- Accuracy: ±10%
- Max Pressure: 1.75 MPa
- Connector: 3-wire (VCC, GND, Signal)
- Operating Temperature: 0°C to 80°C
