Overview

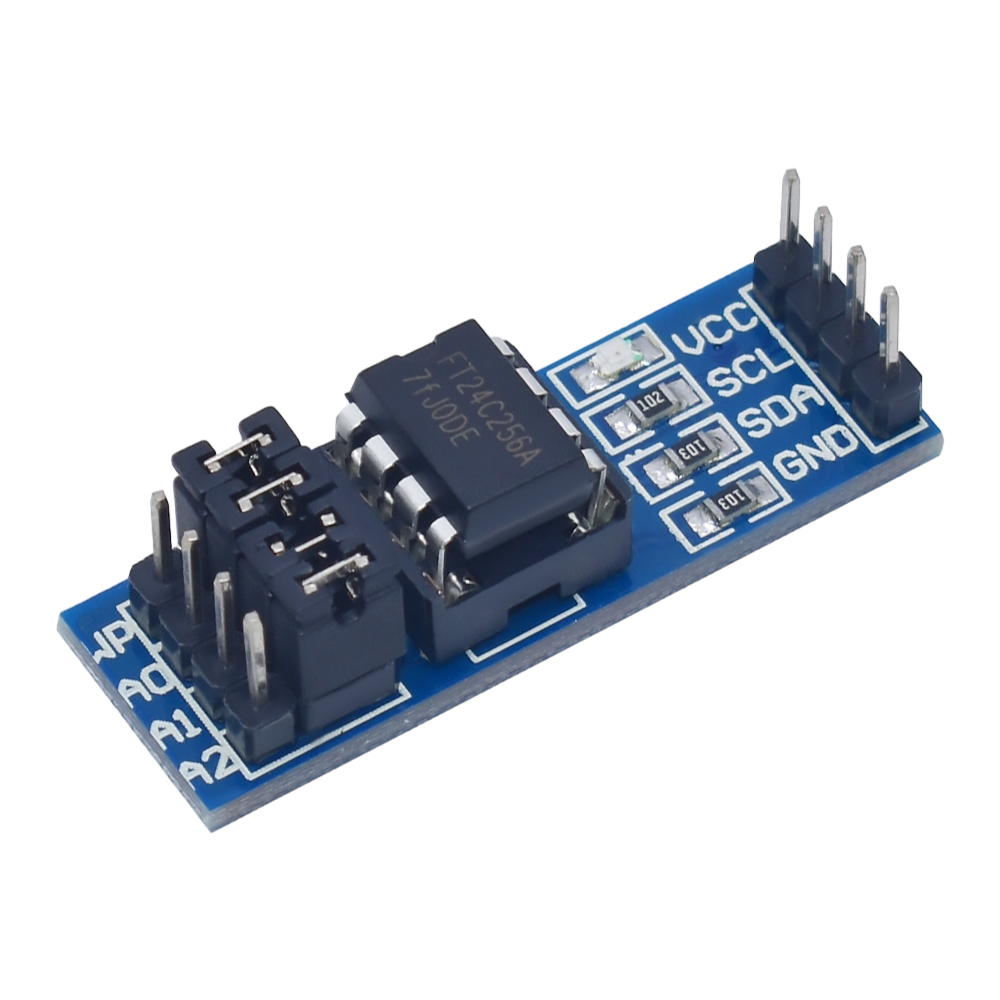

The AT24C256 EEPROM Module is a non-volatile memory module with 256 Kbits (32 KB) of storage, designed for applications requiring long-term data retention. Using the I2C interface, it can be easily integrated into microcontroller-based projects for storing configurations, logs, or other data.
Features
- Large Storage: 256 Kbits (32 KB) capacity for extensive data storage.
- I2C Interface: Simplifies communication with microcontrollers like Arduino and Raspberry Pi.
- Non-Volatile Memory: Retains data even after power is disconnected.
- Wide Voltage Range: Operates between 2.5V and 5.5V, suitable for various systems.
- Write Protection: Prevents accidental data overwrite.
Specifications
- Chip: AT24C256
- Memory Capacity: 256 Kbits (32 KB)
- Interface: I2C (2-wire, SDA/SCL)
- Operating Voltage: 2.5V to 5.5V
- Write Cycle Time: 5 ms (typical)
- Data Retention: 100 years
